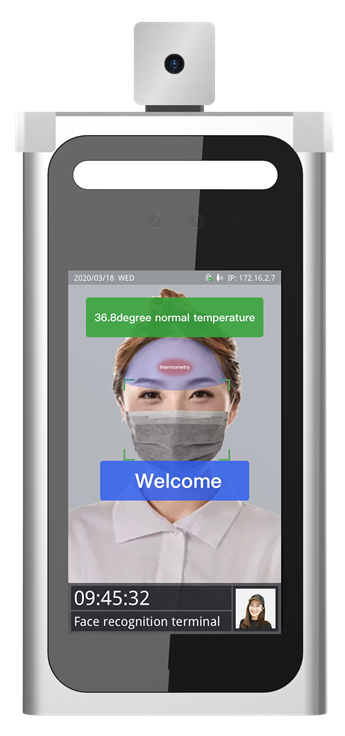

 Product overview :
 Precise temperature measurement :
Equipped with infrared non-contact temperature measuring module, medical precision temperature measuring, temperature measuring accuracy up to 0.5 °C, real-time temperature measuring, automatic collection, recording body temperature information 。

 Temperature anomaly alert :
If the temperature data exceeds the threshold set by the user, the terminal will issue an abnormal warning, effective screening of abnormal temperature personnel.

 Mask identification:
The utility model can integrate the mask detection function, judge whether the passer-by wears a mask or not, and at the same time, carry on the face recognition comparison to the wearers, so as to ensure the security of the personal identity.

 Face recognition:
Based on face recognition technology, non-contact access control and attendance, effectively avoid the potential risk of traditional contact access control.

● Anti-counterfeiting detection of binocular living body:
Equipped with a binocular camera, can effectively resist photos, video and other cheating attacks to ensure the accuracy of data.

 faces:
It can quickly lock the target identity of body temperature abnormality through face recognition, and improve the efficiency of pre-warning, in-process and post-trace.

 Security and stability:

Using high-performance, high-stability embedded Linux system, BUILT-IN HIGH-PERFORMANCE AI processor.


 Rapid Deployment:

Support for the installation of gate, wall,  rapid deployment, to meet the needs of various installation environments and scenarios, reduce the risk of cross-infection, save human and material resources.


 Use Environment

The temperature measurement accuracy is not affected by the working temperature of the airframe. The airframe is suitable for wide temperature range from - 20

°C to 60 °C.

Applications :

It is suitable for quick check of body temperature in subway station, customs port, airport, railway station, hospital, school, community, commercial super and check station, etc.

Product parameters :
Model WD2122H61-LTc
System Linux
Dimensions 7 inches
Luminance 450cd/m2
Resolution 1024 ×600
Resolution 200W (1920 ×1080 )
Sensors 1/2.7鈥�  CMOS
Lens 4mm &F2.2
White balance Automatic, low color temperature, high color temperature, manual
WDR Support
Fill lamp RGB and IR
 Temperature range 30鈩儈45鈩�
Temperature range 30-50cm
Precision 0.5鈩�
Detection Angle Vertical: 90 degrees, horizontal: 53 degrees
Face detection Maximum face detection
Storage capacity 20,000 faces, 150,000 records
1 :N  The recognition speed 鈮�0.2 s / person, the recognition accuracy 鈮�99%
Stranger detection Support
Identification Distance 0.5m-1.0m
Configuration settings Web Configuration, remote device upgrade
Identification parameter Black and white list, detection sensitivity, comparison threshold, Area Defense, face frame switch
Biopsy Support
Mask detection Support
Network  10/100Mbps 、 RJ45
Audio Built-in speaker, voice broadcast
Relay  1 Normally Open Signal, 1 normally closed signal
Wigan 26 、34 (D0 、D1 、GND )
Switching signal Switch Button Access 1, door magnetic signal access 1
Reset Support
Power DV12 ±10%
 Environment Indoor Environment锛�-20鈩冿綖60鈩� &10锝�90%RH
Installation mode Bracket selection, wall mounting, brake mounting
Dimensions (mm) L*W*H:247mm*126.9mm *26.6mm
Weight 鈮�1.5kg
